Immersion Transducers

IM and IU-style Immersion Transducers

Our IM and IU case design focused and unfocused style transducers ranging from 1MHz and 25MHz and from 0.125" to 0.25" diamter fit for especially hard to reach applications.

  • Small diamter stainless steel case for hard to reach areas.
  • Avaialble with ¼" and ⅛" element diameters.
  • Top Microdot connector is standard for 'IM'-style and UHF connector for 'IU'-style.
  • Consult us for available design changes.
Frequency (MHz) Element Diameter (inch/mm) G-style R-style P-style
1.00.25" / 6mmIMG012IMR012IMP012
2.250.25" / 6mmIMG022IMR022IMP022
3.50.25" / 6mmIMG032IMR032IMP032
5.00.25" / 6mmIMG051IMR051IMP051
5.00.125" / 3mmIMG052IMR052IMP052
7.50.125" / 3mmIMG071IMR071IMP071
7.50.25" / 6mmIMG072IMR072IMP072
10.00.125" / 3mmIMG101IMR101IMP101
10.00.25" / 6mmIMG102IMR102IMP102
15.00.125" / 3mmIMG151IMR151IMP151
15.00.25" / 6mmIMG152IMR152IMP152
20.00.125" / 3mmIMG201IMR201IMP201
20.00.25" / 6mmIMG202IMR202IMP202
25.00.125" / 3mmIMG251IMR251IMP251
25.00.25" / 6mmIMG252IMR252IMP252

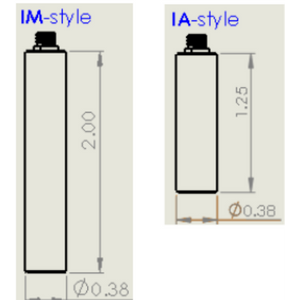

IM-Style Transducer
Frequency (MHz) Element Diameter (inch/mm) G-style R-style P-style
1.00.25" / 6mmIUG012IUR012IUP012
2.250.25" / 6mmIUG022IUR022IUP022
3.50.25" / 6mmIUG032IUR032IUP032
5.00.25" / 6mmIUG051IUR051IUP051
5.00.125" / 3mmIUG052IUR052IUP052
7.50.125" / 3mmIUG071IUR071IUP071
7.50.25" / 6mmIUG072IUR072IUP072
10.00.125" / 3mmIUG101IUR101IUP101
10.00.25" / 6mmIUG102IUR102IUP102
15.00.125" / 3mmIUG151IUR151IUP151
15.00.25" / 6mmIUG152IUR152IUP152
20.00.125" / 3mmIUG201IUR201IUP201
20.00.25" / 6mmIUG202IUR202IUP202
25.00.125" / 3mmIUG251IUR251IUP251
25.00.25" / 6mmIUG252IUR252IUP252

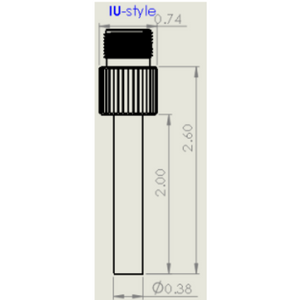

IU-Style Transducer

IS-style Immersion Transducers

Our IS-style single element focused and unfocused style transducers from 0.5MHz to 25MHz and for 0.25" - 0.25" diamter commonly used for thickness gauging, automated scanning, and materialy analysis.

  • Corrosion resistant knurled stainless steel case.
  • Top UHF connector is standard.
  • Consult us for available design changes.
Frequency (MHz) Element Diameter (inch/mm) G-style R-style P-style
0.50.5" / 13mmISG0.54ISR0.54ISP0.54
10.5" / 13mmISG014ISR014ISP014
2.250.25" / 6mmISG022ISR022ISP022
2.250.375" / 10mmISG023ISR023ISP023
2.250.5" / 13mmISG024ISR024ISP024
3.50.25" / 6mmISG032ISR032ISP032
3.50.375" / 10mmISG033ISR033ISP033
3.50.5" / 13mmISG034ISR034ISP034
50.25" / 6mmISG052ISR052ISP052
50.375" / 10mmISG053ISR053ISP053
50.5" / 13mmISG054ISR054ISP054
7.50.25" / 6mmISG072ISR072ISP072
7.50.375" / 10mmISG073ISR073ISP073
7.50.5" / 13mmISG074ISR074ISP074
100.25" / 6mmISG102ISR102ISP102
100.375" / 10mmISG103ISR103ISP103
100.5" / 13mmISG104ISR104ISP104
150.25" / 6mmISG152ISR152ISP152
150.375" / 10mm1SG1531SR1531SP153
150.5" / 13mmISG154ISR154ISP154
200.25" / 6mmISG202ISR202ISP202
250.25" / 6mmISG252ISR252ISP252

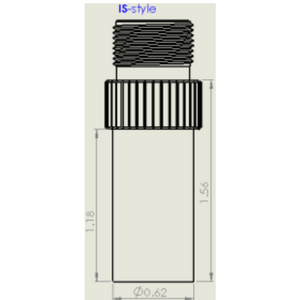

IS-Style Transducer

IB-style Immersion Transducers

Our IB-style single element focused and unfocused style transducers style transudcers from 0.5MHz to 10MHz and 0.75" to 1.5" diamter with increased scanning index and near field length, great for automated scanning and material analysis.

  • Corrosion resistant knurled stainless steel case.
  • Top UHF connector is standard.
  • Lower frequencies and bigger aperature designs available for demanding applications.
  • Consult us for available design changes.
Frequency (MHz) Element Diameter (inch/mm) G-style R-style P-style
0.50.75" / 19mmIBG0.56IBR0.56IBP0.56
0.51.0" / 25mmIBG0.58IBR0.508IBP0.58
0.51.25" / 32mmIBG0.510IBR0.510IBP0.510
0.51.5" / 38mmIBG0.512IBR0.512IBP0.512
10.75" / 19mmIBG016IBR016IBP016
11.0" / 25mmIBG018IBR018IBP018
11.25" / 32mmIBG0110IBR0110IBP0110
11.5" / 38mmIBG0112IBR0112IBP0112
2.250.75" / 19mmIBG026IBR026IBP026
2.251.0" / 25mmIBG028IBR028IBP028
2.251.25" / 32mmIBG0210IBR0210IBP0210
2.251.5" / 38mmIBG0212IBR0212IBP0212
3.50.75" / 19mmIBG036IBR036IBP036
3.51.0" / 25mmIBG038IBR038IBP038
3.51.25" / 32mmIBG0310IBR0310IBP0310
3.51.5" / 38mmIBG0312IBR0312IBP0312
50.75" / 19mmIBG056IBR056IBP056
51.0" / 25mmIBG058IBR058IBP058

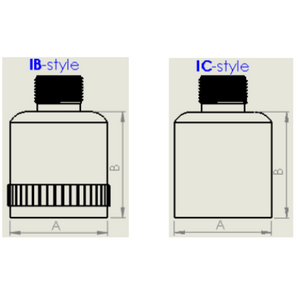

IB-Style Transducer

IPB-style Immersion Transducers

Our IP-style single element focused and unfocused 'paintbrush' style transducers from 2.25MHz to 10MHz and 1.5" to 3.0" long, offer increased scanning index for inspections of aluminum or steel plates.

  • Corrosion resistant stainless steel case.
  • Top UHF connector is standard.
  • Sensitivity uniformity is mainted across the transducer lens.
  • Consult us for available design changes.
Frequency (MHz) Element Dimensions (inch/mm) Part Number
11.5"x0.25" / 38mmx6mmIPB011
12.0"x0.25" / 51mmx6mmIPB012
13.0"x0.25" / 76mmx6mmIPB013
2.251.5"x0.25" / 38mmx6mmIPB021
2.252.0"x0.25" / 51mmx6mmIPB022
2.253.0"x0.25" / 76mmx6mmIPB023
3.51.5"x0.25" / 38mmx6mmIPB031
3.52.0"x0.25" / 51mmx6mmIPB032
3.53.0"x0.25" / 76mmx6mmIPB033
51.5"x0.25" / 38mmx6mmIPB051
52.0"x0.25" / 51mmx6mmIPB052
53.0"x0.25" / 76mmx6mmIPB053
7.51.5"x0.25" / 38mmx6mmIPB071
7.52.0"x0.25" / 51mmx6mmIPB072
7.53.0"x0.25" / 76mmx6mmIPB073
101.5"x0.25" / 38mmx6mmIPB101
102.0"x0.25" / 51mmx6mmIPB102
103.0"x0.25" / 76mmx6mmIPB103

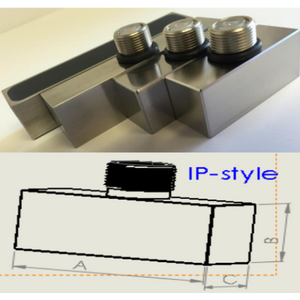

IPB-Style Transducer

IR-style Immersion Transducers

IR-style immersion transducers are the optimum choice for direct right angle beam applications, including thru-transmission, inside diameters, bore holes and other limited access situations. Available in a wide range of frequencies and sizes. Right angle IR-style transducers fit standard STA-style search tubes, eliminating the need for right angle adapters or reflectors.

Frequency (MHz) Element Diameter (inch/mm) G-style R-style P-style
0.50.5" / 13mmIRG0.54IRR0.54IRP0.54
10.5" / 13mmIRG014IRR014IRP014
2.250.25" / 6mmIRG022IRR022IRP022
2.250.375" / 10mmIRG023IRR023IRP023
2.250.5" / 13mmIRG024IRR024IRP024
3.50.25" / 6mmIRG032IRR032IRP032
3.50.375" / 10mmIRG033IRR033IRP033
3.50.5" / 13mmIRG034IRR034IRP034
50.25" / 6mmIRG052IRR052IRP052
50.375" / 10mmIRG053IRR053IRP053
50.5" / 13mmIRG054IRR054IRP054
7.50.25" / 6mmIRG072IRR072IRP072
7.50.375" / 10mmIRG073IRR073IRP073
7.50.5" / 13mmIRG074IRR074IRP074
100.25" / 6mmIRG102IRR102IRP102
100.375" / 10mmIRG103IRR103IRP103
100.5" / 13mmIRG104IRR104IRP104
150.25" / 6mmIRG152IRR152IRP152
150.375" / 10mmIRG153IRR153IRP153
150.5" / 13mmIRG154IRR154IRP154
200.25" / 6mmIRG202IRR202IRP202
250.25" / 6mmIRG252IRR252IRP252

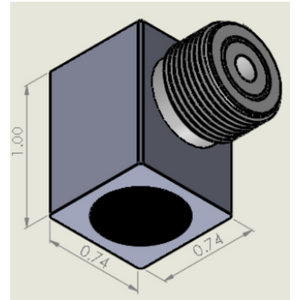

IR-Style Transducer
