This transducer type is designed for applications such as high precision thickness gauging of thin materials, flaw detection and delamination checks in composite materials.

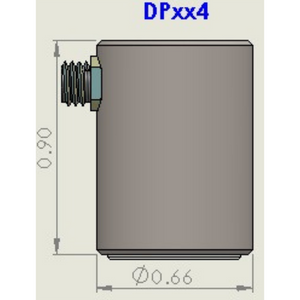

| Frequency (MHz) | Element Diameter (inch) | Element Diameter (mm) | DP-style |
|---|---|---|---|
| 1 | 0.5" | 13 | DP014 |
| 2.25 | 0.25" | 6 | DP022 |
| 2.25 | 0.5" | 13 | DP024 |
| 3.5 | 0.25" | 6 | DP032 |
| 3.5 | 0.5" | 13 | DP034 |
| 5 | 0.25" | 6 | DP052 |
| 5 | 0.5" | 13 | DP054 |
| 10 | 0.25" | 6 | DP072 |
| 10 | 0.5" | 13 | DP074 |
| 15 | 0.125" | 3 | DP151 |
| 15 | 0.25" | 6 | DP152 |
| 20 | 0.125" | 3 | DP201 |
| 20 | 0.25" | 6 | DP202 |
| 25 | 0.125" | 3 | DP251 |
| 25 | 0.25" | 6 | DP252 |

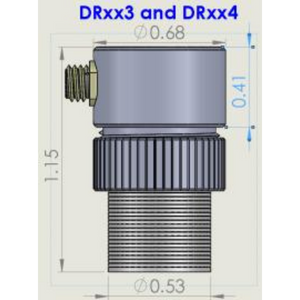

| Frequency (MHz) | Element Diameter (inch) | Element Diameter (mm) | DR-style |
|---|---|---|---|
| 1 | 0.5" | 13 | DR014 |
| 2.25 | 0.25" | 6 | DR022 |
| 2.25 | 0.5" | 13 | DR024 |
| 3.5 | 0.25" | 6 | DR032 |
| 3.5 | 0.5" | 13 | DR034 |
| 5 | 0.25" | 6 | DR052 |
| 5 | 0.5" | 13 | DR054 |
| 10 | 0.25" | 6 | DR072 |
| 10 | 0.5" | 13 | DR074 |
| 15 | 0.125" | 3 | DR151 |
| 15 | 0.25" | 6 | DR152 |
| 20 | 0.125" | 3 | DR201 |
| 20 | 0.25" | 6 | DR202 |
| 25 | 0.125" | 3 | DR251 |
| 25 | 0.25" | 6 | DR252 |
