ndtXducer® single element contact longitudinal wave transducers are used for general purpose manual ultrasonic inspection where test material is relatively flat and smooth. Contact transducers provide high sensitivity for better penetration and are ruggedly constructed for extended life service under the roughest testing conditions.
Small diameter, single element longitudinal wave transducer used for direct contact with test material. Used for flaw detection and sizing, material characterization and sound velocity measurements.
| Frequency (MHz) | Element Diameter (inch) | Element Diameter (mm) | G-style | R-style |
|---|---|---|---|---|
| 0.5 | 0.5" | 13 | CMG0.54 | CMR0.54 |
| 1 | 0.25" | 6 | CMG012 | CMR012 |
| 1 | 0.375" | 10 | CMG013 | CMR013 |
| 1 | 0.5" | 13 | CMG014 | CMG014 |
| 2.25 | 0.25" | 6 | CMG022 | CMR022 |
| 2.25 | 0.375" | 10 | CMG023 | CMR023 |
| 2.25 | 0.5" | 13 | CMG024 | CMR024 |
| 2.25 | 0.75" | 19 | CMG026 | CMR026 |
| 3.5 | 0.25" | 6 | CMG032 | CMR032 |
| 3.5 | 0.375" | 10 | CMG033 | CMR033 |
| 3.5 | 0.5" | 13 | CMG034 | CMR034 |
| 3.5 | 0.75" | 19 | CMG036 | CMR036 |
| 5 | 0.25" | 6 | CMG052 | CMR052 |
| 5 | 0.375" | 10 | CMG053 | CMR053 |
| 5 | 0.5" | 13 | CMG054 | CMR054 |
| 5 | 0.75" | 19 | CMG056 | CMR056 |
| 7.5 | 0.25" | 6 | CMG072 | CMR072 |
| 7.5 | 0.375" | 10 | CMG073 | CMR073 |
| 7.5 | 0.5" | 13 | CMG074 | CMR074 |
| 7.5 | 0.75" | 19 | CMG076 | CMR076 |
| 10 | 0.25" | 6 | CMG102 | CMR102 |
| 10 | 0.375" | 10 | CMG103 | CMR103 |
| 10 | 0.5" | 13 | CMG104 | CMR104 |

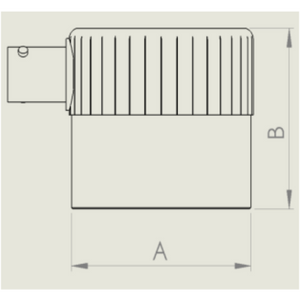

Large diameter single element longitudinal wave transducer for direct contact with test material. Use for inspection of plates, bars, billets, castings, forgings as well as a variety of other metallic and non-metallic materials.
| Frequency (MHz) | Element Diameter (inch) | Element Diameter (mm) | G-style | P-style |
|---|---|---|---|---|
| 0.1 | 1.25" | 32 | CBG0.110 | CBP0.110 |
| 0.1 | 1.5" | 38 | CBG0.112 | CBP0.112 |
| 0.2 | 1.25" | 32 | CBG0.210 | CBP.210 |
| 0.25 | 1.5" | 38 | CBG0.212 | CBP0.212 |
| 0.5 | 1.0" | 25 | CBG0.58 | CBP0.58 |
| 0.5 | 1.25" | 32 | CBG0.510 | CBP0.510 |
| 0.5 | 1.5" | 38 | CBG0.512 | CBP0.512 |
| 1 | 0.5" | 13 | CBG014 | CBP014 |
| 1 | 0.75" | 19 | CBG016 | CBP016 |
| 1 | 1.0" | 25 | CBG018 | CBP018 |
| 1 | 1.25" | 32 | CBG0110 | CBP0110 |
| 1 | 1.5" | 38 | CBG0112 | CBP0112 |
| 2.25 | 0.5" | 13 | CBG024 | CBP024 |
| 2.25 | 0.75" | 19 | CBG026 | CBP026 |
| 2.25 | 1.0" | 25 | CBG028 | CBP028 |
| 2.25 | 1.25" | 32 | CBG0210 | CBP0210 |
| 2.25 | 1.5" | 38 | CBG0212 | CBP0212 |
| 3.5 | 0.5" | 13 | CBG034 | CBP034 |
| 3.5 | 0.75" | 19 | CBG036 | CBP036 |
| 3.5 | 1.0" | 25 | CBG038 | CBP038 |
| 5 | 0.5" | 13 | CBG054 | CBP054 |
| 5 | 0.75" | 19 | CBG056 | CBP056 |
| 5 | 1.0" | 25 | CBG058 | CBP058 |
